Trained installation technicians should work alongside your IT, facilities, finance, and payment-processing teams. In-house staff can support readiness checks and testing, but they shouldn't bypass vendor specifications or electrical code requirements.
Rush the process, and problems surface fast: failed transactions, incorrect account postings, reconciliation gaps, accessibility violations, security exposure, downtime, costly rework, and warranty complications. This guide walks through preparation, deployment, configuration, and validation, so nothing gets skipped.
Key Takeaways
- Confirm site, power, network, structural, accessibility, and integration readiness before hardware arrives
- Follow a defined sequence: configure, position, connect, integrate, set the customer journey, then test
- Validate every payment method, account lookup path, receipt, and reconciliation workflow before launch
- Assign clear ownership for cash handling, support, replenishment, and maintenance after go-live
Installation Guide for Payment Kiosks
Kiosk installation breaks down into four connected phases: preparation, physical deployment, system configuration, and commissioning. The final timeline depends on kiosk type, site conditions, network access, accepted payment methods, and how deeply the kiosk integrates with your billing system.
Expect coordination across multiple teams: the kiosk provider, facilities personnel, IT or security staff, finance or treasury, and whichever department handles customer service. Skipping any one of these groups usually shows up later as a support ticket.
Prerequisites and Safety Considerations
Before installation begins, confirm the following:
- Physical space: Floor, counter, wall, or in-wall spot with approach room, lighting, ventilation, and tamper or weather protection
- Power and connectivity: Grounded power, network access, firewall rules, secure wired or wireless links, and cellular backup if needed
- Hardware compatibility: Kiosk, EMV terminal, cash or check modules, printer, and scanner must work with your billing, court, tax, or utility system
Compliance matters just as much as the wiring. Payment handling should align with PCI-DSS, card acceptance should be EMV-certified where applicable, and the interface needs ADA-accessible reach, readable screens, and privacy protections around session data.
Buying a PCI-approved terminal does not make the full deployment PCI compliant. The PCI Security Standards Council notes that a PTS-approved device alone doesn't establish PCI DSS compliance for the cardholder-data environment—so network links, terminal management, and configuration still need separate review.
Do not install yet until power, network security, structural support, accessibility clearance, and integration test data are validated. Skipping this check is where most post-launch headaches begin.
Tools and Parts Required
Split responsibilities between the vendor and the site:
- Vendor-supplied: Enclosure, approved mounts, payment terminal, touchscreen, scanner, printer, cash/coin gear, and signage
- Site-provided: Wall or floor reinforcement, conduit, cable management, protected outlets, and weather-rated parts for outdoor or through-wall units
- Configuration materials: Test accounts, sample bills or barcodes, test tenders, receipt stock, integration docs, and approved network credentials
Always use manufacturer-approved parts, and bring in qualified electrical or construction professionals for structural modifications. This isn't the place to improvise.

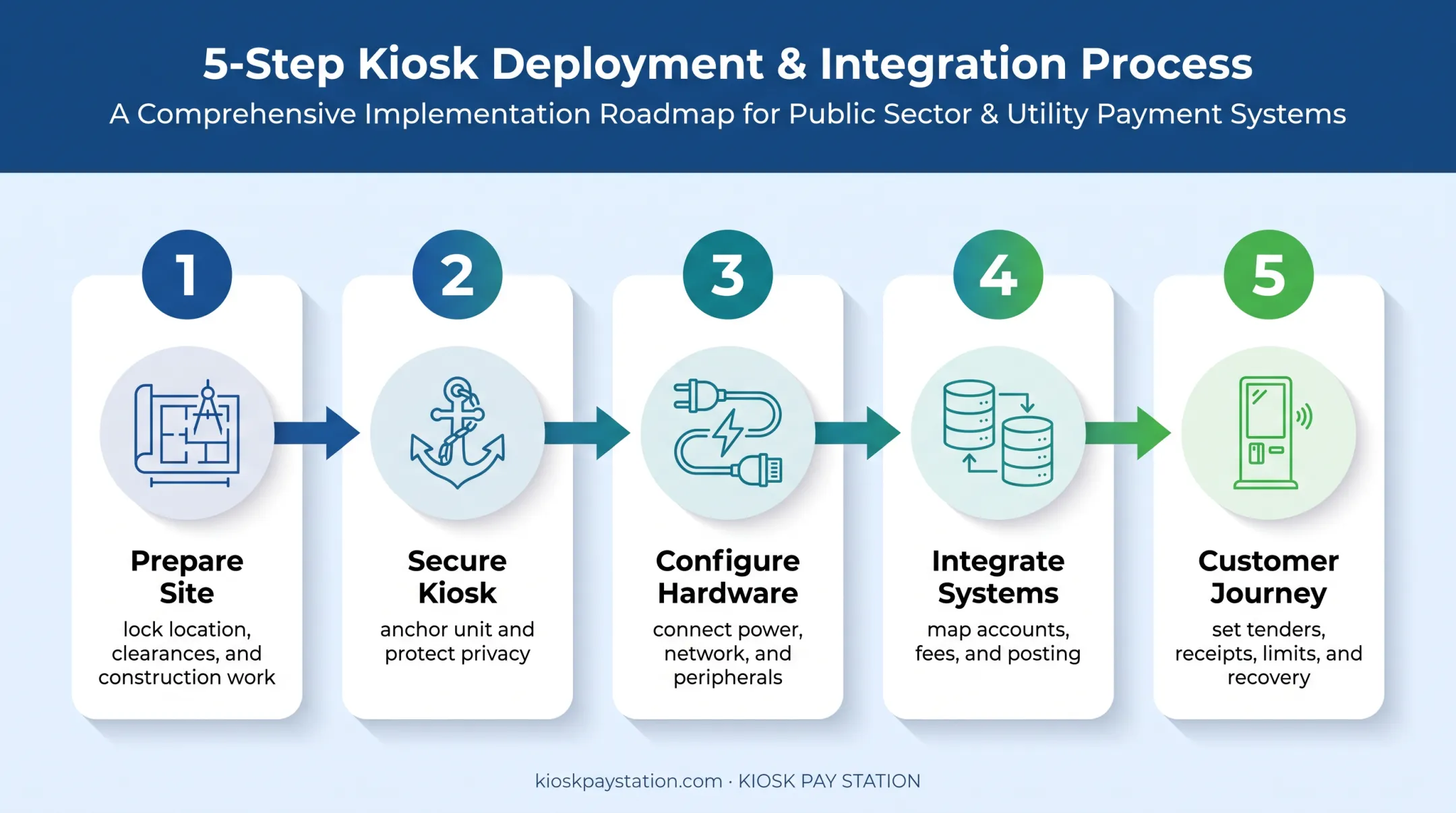

How to Install and Configure a Payment Kiosk (Step-by-Step)
Shortcuts here usually fail after launch—in account lookup, authorization, posting, or reconciliation.
- Prepare the site and plan — Lock the location, clearances, and construction or electrical work. Approve network access, coordinate delivery, and schedule install in a low-traffic window.
- Position and secure the kiosk — Anchor standalone, countertop, or in-wall units as specified. Route cables safely, limit unauthorized access, and protect PIN and balance privacy.
- Connect and configure hardware — Wire power and secured network links. Install the EMV terminal, scanner, check reader, printer, and cash/coin modules, then confirm the software sees every peripheral.
- Integrate with your systems — Choose real-time, file-based, or non-validated posting. Map accounts, balances, fees, department codes, and property or case IDs, and define when payments post and reconcile.
- Configure the customer journey — Set language, branding, and lookup methods (invoice, barcode, QR, name, or account number). Define limits, tenders, confirmations, receipts, timeouts, and error recovery.
KIOSK PAY STATION runs this sequence during onboarding—Integration, Installation, and Optimization—so hardware drop-off is not the finish line. Typical units include:
- 21.5-inch touchscreen and EMV reader (tap, dip, swipe)
- Receipt printer and secure steel enclosure
- Standalone models that accept bills and dispense exact change in bills and coins

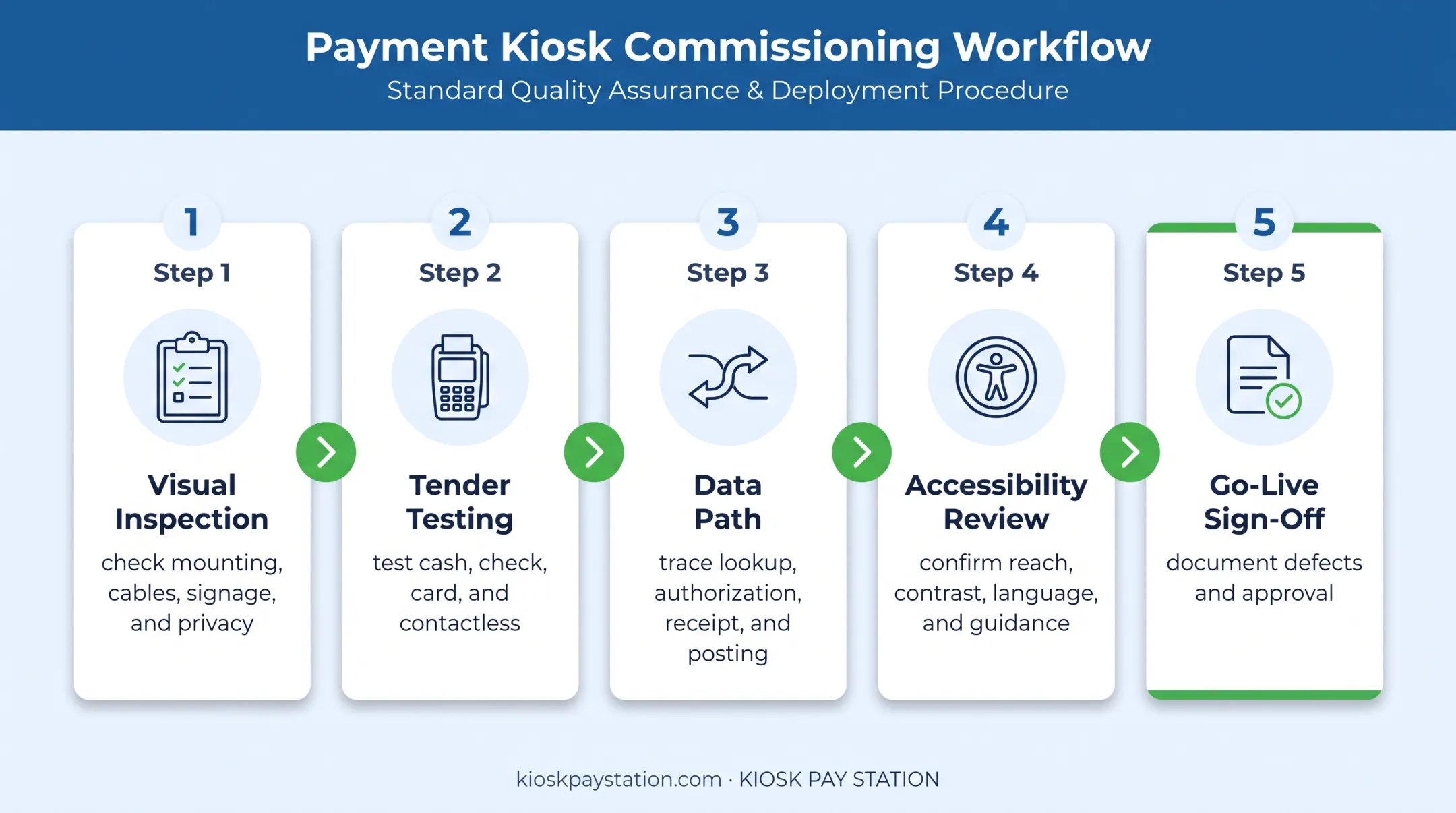

Post-Installation Checks and Validation
Once hardware is connected, the real work of validation begins. This is the step organizations most often shortchange, and it's where problems hide.
Start with a visual and structural inspection, covering:
- Mounting stability and enclosure condition
- Cable management and screen clarity
- Signage placement and accessibility clearances
- Privacy positioning around the keypad and screen
- Any visible tamper or safety concerns
Run controlled transactions for every enabled tender: cash, check, credit, debit, contactless, or e-wallet. Don't present a payment type as available if it hasn't been tested. Where the system allows, test successful, declined, cancelled, reversed, and interrupted transactions.
Next, trace the complete data path end to end:
- Account lookup and balance display
- Fee calculation and authorization
- Receipt generation and transaction reference
- Posting to the billing system
- Settlement and reconciliation
Use test records first. Never point a new kiosk at live customer accounts before this path is confirmed.
Finally, validate accessibility and usability with the intended audience or an accessibility reviewer. Confirm:
- Reach ranges and touch-target size
- Contrast, language selection, and error messages
- Voice or light guidance and privacy at the keypad and screen
Document results, outstanding defects, and final go-live sign-off in one record. Skipping these checks only postpones discovery of configuration errors until a customer reports a failed payment or finance staff find a reconciliation discrepancy weeks later.

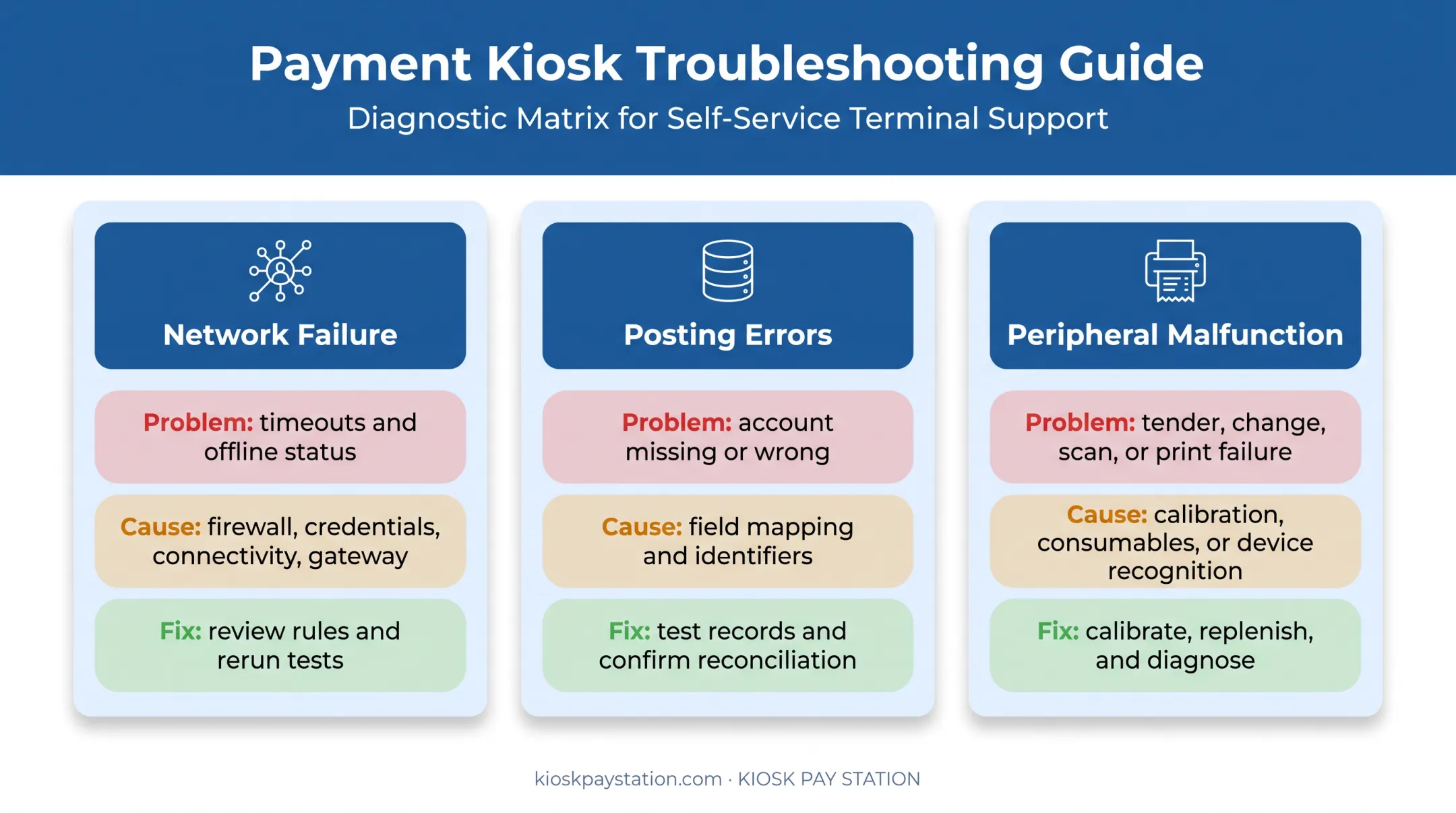

Common Installation Problems and Fixes
Most early deployment issues fall into three categories. Catching them during commissioning is far cheaper than fixing them after launch.
Network or Payment Connection Failure
Problem: Transactions time out, payment devices won't connect, or the kiosk shows an offline status.
Likely causes: Blocked firewall access, incorrect credentials, unstable connectivity, or incomplete gateway configuration.
Fix: Review network rules and device settings with IT and the payment provider, then re-run controlled tests before reopening the unit to the public.
Account Lookup or Posting Errors
Problem: A customer can't find their account, the wrong record appears, or a completed payment doesn't post correctly.
Likely causes: Incorrect field mapping, stale test data, mismatched identifiers, or incomplete integration.
Fix: Test against representative records, correct the mappings, and confirm posting and reconciliation before switching to live accounts.
Cash, Check, Printer, or Peripheral Malfunction
Problem: The kiosk misreads a tender, fails to dispense change, can't scan a check or barcode, or won't print a receipt.
Likely causes: Mechanical calibration, low consumables, poor installation, unsupported media, or an unrecognized device.
Fix: Run manufacturer-approved calibration, replenish consumables, run peripheral diagnostics, and repeat testing.
Real-world example: Ashland, Oregon's utility-payment kiosk temporarily lost the ability to process credit cards while cash and check payments kept working. That kind of partial failure is exactly why staff shouldn't clear a kiosk for public service just because one payment type works.
Every advertised tender and customer-facing output needs its own validation pass before you call the unit ready.
Pro Tips for Installing Payment Kiosks Effectively
A few practices separate smooth deployments from ones that drag on for months:
- Treat delivery, installation, integration testing, accessibility review, and staff training as separate checkpoints—not one bundled event. Hardware placement is the midpoint of the project, not the end.
- Involve IT security, facilities, finance, and customer service early. Keep network approvals, configuration values, data mappings, test results, and go-live sign-off in one deployment record.
- Assign post-launch owners for paper, cash, cleaning, disputes, reconciliation exceptions, software updates, and escalations before go-live.
If your team lacks in-house payment, integration, or accessibility expertise, vendor-led installation is worth the investment.
KIOSK PAY STATION builds government bill-payment kiosks for agencies that need compliant self-service collection with ongoing support:
- PCI-DSS-compliant, EMV-certified payment technology
- Custom data capture for department codes, property IDs, and similar fields
- Standalone, countertop, and in-wall configurations
- Five years of onsite maintenance with component replacement
Most deployments launch in weeks rather than months, with alerts that flag low paper or cash replenishment automatically.
Conclusion
Installation quality determines whether a kiosk stays reliable in daily use. It shapes payment security, accessibility, transaction accuracy, reconciliation, and how much customers trust the machine going forward.
Before go-live, lock in these basics:
- Prepare the site carefully
- Coordinate across departments
- Validate the full payment and posting workflow before public use
- Require a vendor deployment plan that separates hardware, software, integration, installation, training, and maintenance
For agencies that need a partner experienced in government and public-service payment kiosk deployment, KIOSK PAY STATION provides purpose-built hardware and ongoing support designed for bill-payment environments.
Frequently Asked Questions
How much does it cost to install a payment kiosk?
Total cost depends on kiosk configuration, site prep, electrical and network work, software integration, and how many units you deploy. Request an itemized quote instead of a generic kiosk price.
What payment methods do payment kiosks support?
Depending on model and setup, kiosks can accept cash, checks, credit and debit cards, contactless payments, and e-wallets. Confirm fees, settlement, cash handling, and reconciliation for each method you enable.
What software do payment kiosks use?
Kiosks run interface software tied to payment processing, account lookup, billing systems, reporting, and reconciliation. Integration can be real-time, file-based, or non-validated based on your requirements.
How long does kiosk installation typically take?
Timelines depend on site readiness, network access, and integration depth. Sites with existing infrastructure finish faster than projects that need new electrical work or complex billing-system mapping.
Do payment kiosks need to be ADA accessible?
Yes. Covered operable parts generally need 15–48 inch unobstructed reach and no more than 5 pounds of force. Exact rules depend on which elements your layout covers under current ADA guidelines.
