This guide breaks down what data integration actually means, how it works, and the common approaches organizations use to unify their systems. We'll also clarify a common point of confusion: how data integration differs from ETL and application integration, and where a real-world public-sector payment example fits into the picture.
Key Takeaways
- Data integration combines data from multiple sources into one unified, consistent view for reporting and analysis
- Common approaches include ETL, ELT, real-time streaming, application integration, and data virtualization
- ETL is a technique used within data integration, not a synonym for the whole process
- Strong data integration improves accuracy and speeds up decision-making across departments, including billing and payment reconciliation
What Is Data Integration?
Data integration is the process of combining data from multiple, often incompatible, sources into one coherent format that people and systems can actually use. IBM defines it as harmonizing data for analytical, operational, and decision-making purposes.

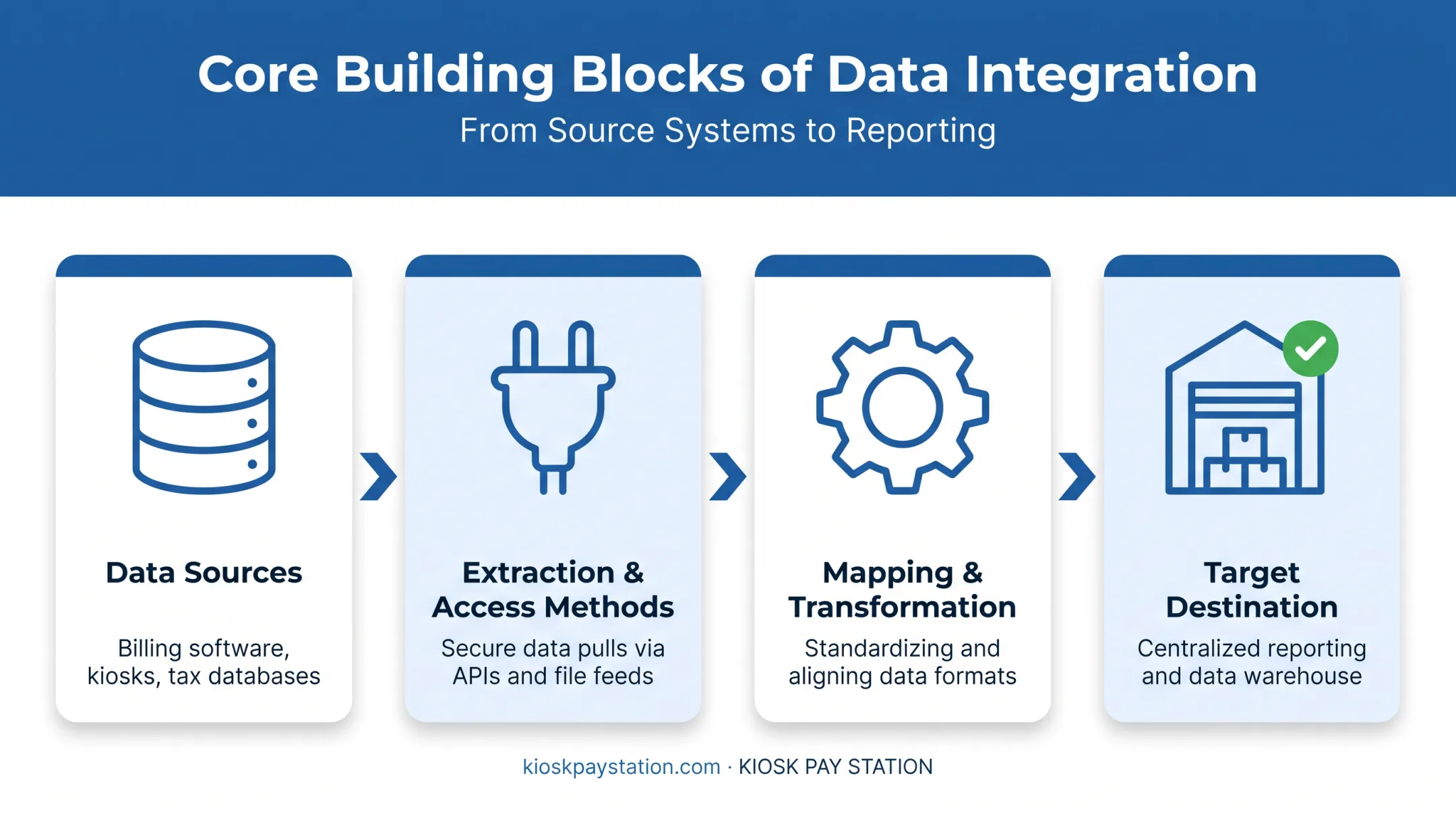

Every integration setup rests on the same four building blocks:
- Data sources — the original systems (billing software, kiosks, tax databases)
- Extraction/access methods — how data gets pulled or accessed
- Mapping and transformation — aligning fields, formats, and terminology across systems
- Target destination — a warehouse, lake, or application where unified data lands
Why It Matters: Eliminating Silos
Integration exists to give every stakeholder, from a finance director to a department clerk, one trustworthy version of the truth. Without integration, three departments might report three different revenue totals for the same day, and nobody can say which one is right.
Data integration also isn't a "set it and forget it" project. Systems change, new payment channels get added, and reporting needs shift. Integration has to evolve alongside them.
A simple example: Picture a county government pulling payment kiosk transactions, tax records, and utility billing data into a single dashboard. Instead of three separate reports that don't match, finance staff see one reconciled number each morning.
How Does Data Integration Work?
The typical workflow follows a consistent sequence, regardless of industry:
- Identify data sources — locate every system holding relevant data
- Extract — pull the data out without disrupting the source system
- Map and align schemas — match fields across systems (for example, "payment_id" vs. "transaction_ref")
- Validate — check for errors, duplicates, or missing values
- Transform — clean, standardize, and format the data
- Load — place the transformed data into its destination
- Synchronize — keep everything updated as new transactions arrive
Two Architectural Approaches
Organizations generally choose between two models:
- Tight coupling (data warehousing): data is physically moved and stored centrally, which supports deep cleansing before it's used
- Loose coupling (federation/virtualization): data stays where it is, and a software layer creates a unified view on demand
Either model only works at scale if the pipeline stays automated. Global data volume is exploding—IDC projected the Global Datasphere growing from 45 zettabytes in 2019 to 175 zettabytes by 2025. Manual reconciliation simply can't keep pace.
Governance Isn't Optional
Payment data is sensitive. Integration workflows need access controls and compliance safeguards, particularly for anything touching cardholder or citizen financial data governed by PCI DSS.
Flexibility matters too. Agencies rarely share one integration pattern:
- Real-time sync when counters and back-office ledgers must stay current
- File-based transfers for scheduled batch reconciliation
- Non-validated sync when speed matters more than upfront checks
Kiosk Pay Station's billing-system integration services support those options so treasury, court, and utility teams can connect payment data to existing back-office systems without a one-size-fits-all build.
Types and Approaches to Data Integration
Different situations call for different integration patterns. Here's how the main ones break down.
| Approach | Best suited for |
|---|---|
| ETL | Smaller datasets, complex transformations needed before loading |
| ELT | Cloud-based warehouses, big-data scale, speed priority |
| Real-time/streaming | Fraud detection, live dashboards, instant availability needs |
| CDC | Reducing network load by transmitting only changed records |
| Virtualization/federation | Unified views without physically moving data |
ETL (Extract, Transform, Load) is the traditional pattern: pull data out, clean and reshape it in a staging area, then load it into a warehouse. Informatica describes ETL as a three-step process suited to situations demanding heavy pre-load cleansing.
ELT (Extract, Load, Transform) flips the order. Raw data loads first, then the destination system transforms it. This works well with modern cloud warehouses that can handle transformation at scale.
Real-time/streaming integration covers cases where a nightly batch job is too slow, such as fraud detection and live dashboards that need instant availability.
CDC (Change Data Capture) tracks only changed records. That cuts network and processing load compared with full extracts.
Data virtualization and federation skip physical data movement entirely. A logical layer sits between sources and users, running queries across systems on demand.
Is Data Integration the Same as ETL?
No. ETL is one specific technique inside the broader discipline of data integration. Data integration is the umbrella term covering ETL, ELT, real-time streaming, CDC, and virtualization. Treating "ETL" and "data integration" as interchangeable is a common mistake, but it undersells everything else the field includes.
Data Integration vs. Application Integration
These two get confused constantly, but they solve different problems.
- Application integration connects software systems for real-time operational data sharing. Think syncing an HR system with finance so a new hire automatically appears in payroll.
- Data integration consolidates data primarily for analytics, reporting, and business intelligence, often on a batch or scheduled basis.
IBM notes the core distinction comes down to speed and purpose: application integration is generally real-time and operational, while data integration is typically batch-oriented and analytical.
In practice, most organizations need both. A payment application might trigger an instant confirmation email (application integration) while that same transaction also feeds into a nightly reconciliation report (data integration). Neither replaces the other.
Benefits and Real-World Example of Data Integration
Effective data integration delivers clear operational gains:
- Improved data quality through consistent validation and cleansing rules
- Reduced silos so departments stop working from conflicting numbers
- Faster insights since reports don't wait on manual compilation
- Better decisions based on one trusted dataset instead of three competing spreadsheets
A Public-Sector Example
Picture a municipal finance department pulling together self-service kiosk payment records, cashier terminal data, and utility billing software into one reconciliation report every day, instead of stitching together spreadsheets from three separate sources.

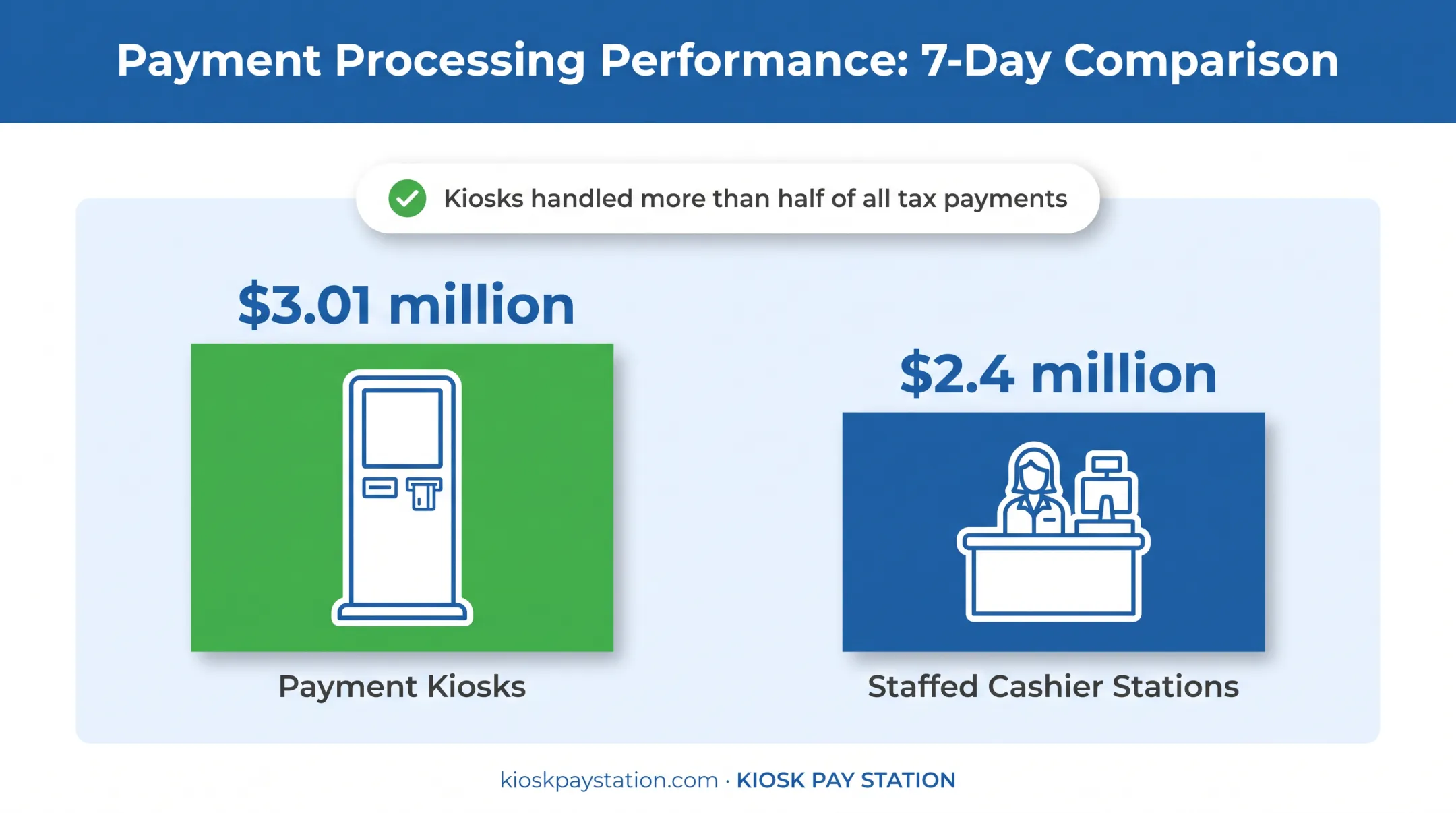

Riverside County deployed two payment kiosks that collected $3.01 million over a seven-day period, outperforming eight staffed cashier stations that processed $2.4 million in the same window. The kiosks handled more than half of all tax payments collected during that stretch.
Those throughput gains stick only when kiosk, cashier, and billing feeds land in one reconciled dataset each day—so finance teams work from a single source of truth instead of three competing exports.
Reconciliation delays aren't a minor annoyance, either. Vendor survey data shows 92% of municipal finance teams operate with three or fewer staff, per Euna's reconciliation report — meaning every hour spent manually matching transactions is an hour a small team can't spend elsewhere.
Frequently Asked Questions
What is meant by data integration?
Data integration is the process of combining data from multiple sources into one unified, usable view for analysis and decision-making. It eliminates conflicting reports and gives stakeholders a single source of truth.
Is data integration the same as ETL?
No. ETL (extract, transform, load) is one method used within the broader data integration process. Data integration also includes ELT, real-time streaming, and data virtualization.
Can you give me an example of data integration?
A county government combining kiosk payment records, tax data, and utility billing into one daily reconciliation report is a clear example. Riverside County’s deployment processed over $3 million in seven days, showing the payment volume integrated reporting can support.
What is the difference between data integration and data migration?
Data migration is a one-time move of data from one system to another. Data integration is an ongoing process that continuously unifies data from multiple active sources.
Why is data integration important for businesses and government agencies?
It improves accuracy, reduces manual reconciliation work, and gives departments a unified view of payments and billing. For agencies managing tight staff resources, that unified reporting saves time that would otherwise go to manual data-matching.
